Cast-in-Situ Manhole Reinforcement Table

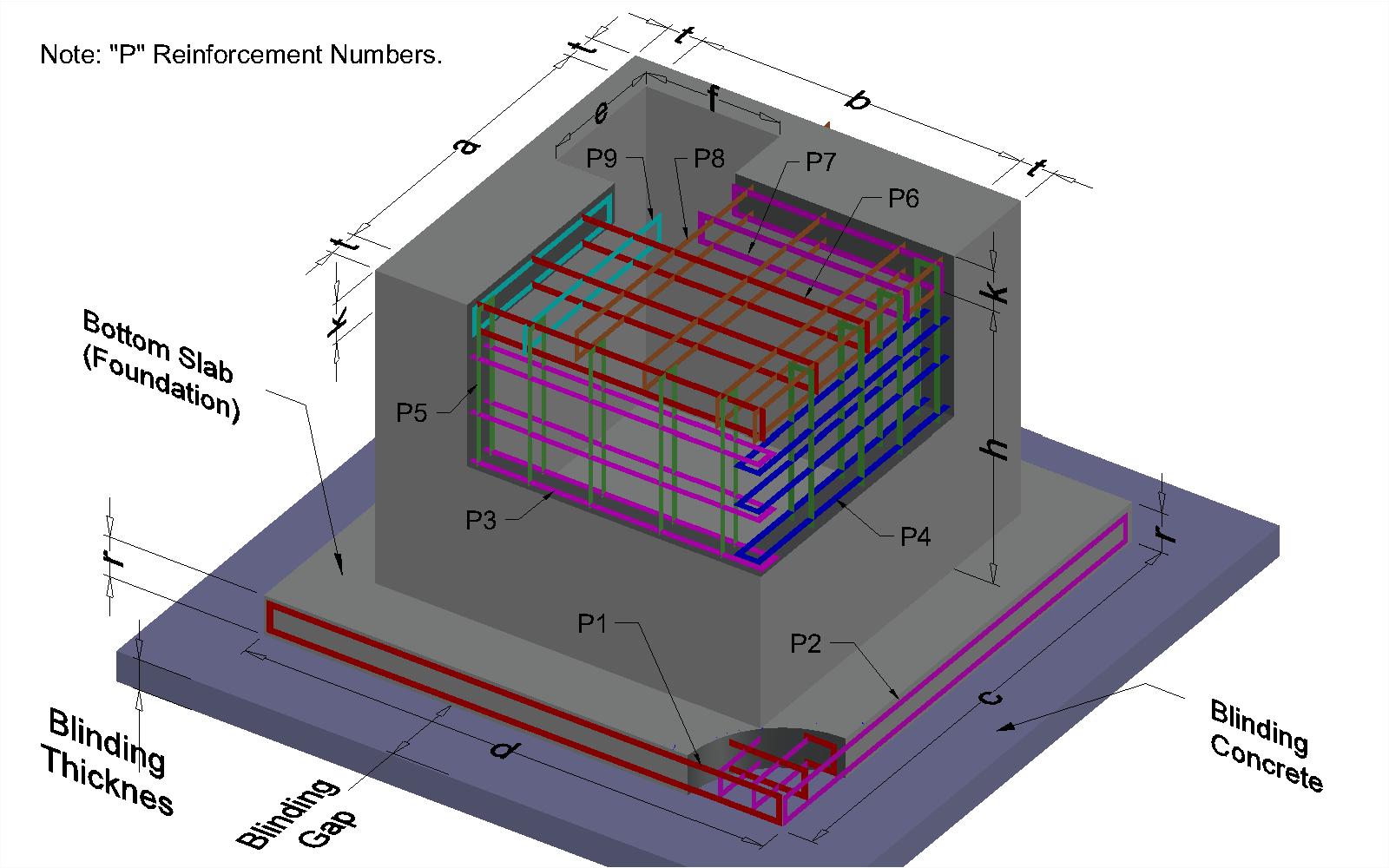

Match each P-position below to its location on this diagram.

Manhole Name

a — inner length (mm)

b — inner width (mm)

c — bottom slab length (mm)

d — bottom slab width (mm)

e — clear opening length (mm)

f — clear opening width (mm)

h — inner height (mm)

k — top slab thickness (mm)

r — bottom slab thickness (mm)

t — wall thickness (mm)

Concrete cover (mm)
